HFC3000II Fusion Electric Handheld Nutrunner

The innovation of the fastening process is here. This is a nutrunner system built for the future of the assembly process.

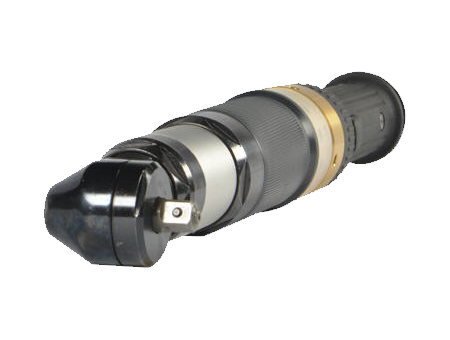

Right Angle Tool
HFT
Product features

Right Angle tools are available in sizes from 15 ~ 130 Nm. A throttle lever & reverse switch are provided standard. Optional sliding spindles, offset gearing & tube nut head are available.

Improved preductivity with high performance
  • Improved fastening ability with high speed digital control and data processing
  • High durability resolver for motor position control and angular feedback
  • 64 selectable parameter sets
  • Built-in sequencing / batch function
  • Embedded pulse control to reduce fastening reaction
Reduced initial & Running costs
  • Digital servo reduces energy consumption
  • One controller covers the full range of hand tools
  • Runs on single phase 100VAC - 200VAC power
  • 'No Cost' software allows simple and quick setup, data monitoring / saving, torque / angle curve analysis and stored data retrieval
Reliable quality management
  • In-process inspection of the fastening cycle by monitoring torque, angle, torque rate and time
  • Visual (LED) and audio confirmation of fastening
  • Store up to 12,000 cycles of fastening data, 100 torque curves and up to 500 abnormal cycles automatically
  • All tools have embedded 'Smart ID' torque transducer and resolver for high accuracy torque / angle feedback - we don't rely on motor current as a means of torque feedback
  • "Self-Check" function - Checks torque transducer is functioning properly at the start of each cycle maintaining system integrity
Flexible communication and result output
  • Data output through RS232, Devicenet, Ethernet I/P, Profibus, etc., and special protocols over optional Ethernet port
  • Graphical User Console (Windows® based software) connection by dedicated ethernet port able to monitor and store resultant fastening data to local / network drives.
  • Confirm tightening result with Tool / Controller LEDs and digital display
  • Monitor / save and analyze cycle data using supplied User Console software

Tool Specifications

Tool Model Max Torque
(N.m)
Max Speed
(rpm)
Weight
(kg)
Square
(mm)
Length
(mm)
Controller
Model
HFT-015M50-A1-20 (CE) 15 1215 1.6 9.5 369 HFC-B024
HFT-025M80-A1-20 (CE) 25 1070 1.7 9.5 389 HFC-B024
HFT-040M80-A1-20 (CE) 40 648 1.9 9.5 414 HFC-B024
HFT-060M80-A-20 (CE) 60 446 1.9 12.5 414 HFC-B024
HFT-080M120-A-20 (CE) 80 557 3.0 12.5 460 HFC-B024
HFT-130M120-A-20 (CE) 130 316 3.3 12.5 485 HFC-B024
HFT-200M120-A-20 (CE) 200 206 3.7 15.9 512 HFC-B024
HFT-200M120-A-21 (CE) 200 206 3.8 19.0 512 HFC-B024
HFT-300M120-A-20 (CE) 300 144 6.2 19.0 586 HFC-B024
